Specifications

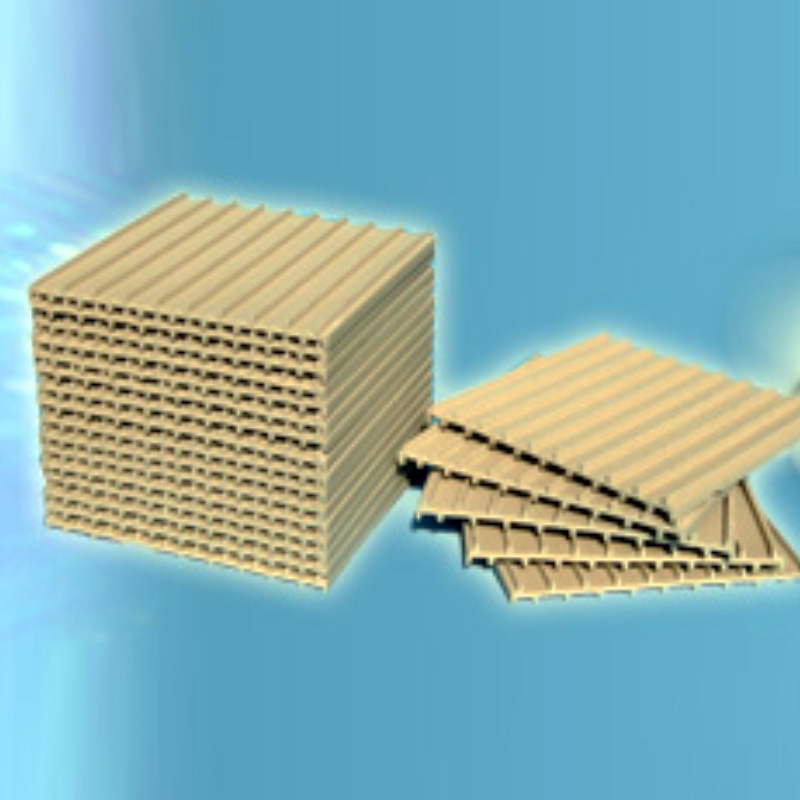

MLM Series technical data :
Item | Unit | MLM-125 | MLM-160 | MLM-180 | MLM-200 | MLM-S-TYPE |
---|---|---|---|---|---|---|
Size | mm | 305x305x101 | 305x305x101 | 305x305x101 | 305x305x101 | 305x305x101 |
Specific surface area | (m²/m³-ft²/ft³) | 410/125 | 525/160 | 590/180 | 655/200 | 787/240 |
Denisty | g/cm³ | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 | 2.25-2.35 |
Volume to weight ratio | % | 703 | 873 | 981 | 1096 | 1052 |
Acid and Alkali-resistance | % | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
Rate of water absorption | % | <0.5 | <0.5 | <0.5 | <0.5 | <0.5 |
Porosity | °C | 69 | 61 | 56 | 51 | 54 |
Max.temp | (kJ/ m² -°C) | 1200 | 1200 | 1200 | 1200 | 1200 |
Thermal Capacity | 33*33 | 670 | 810 | 940 | 1070 | 1070 |
Compressive strength | lb/ft² | 4210 | 5380 | 6120 | 7340 | 7340 |
